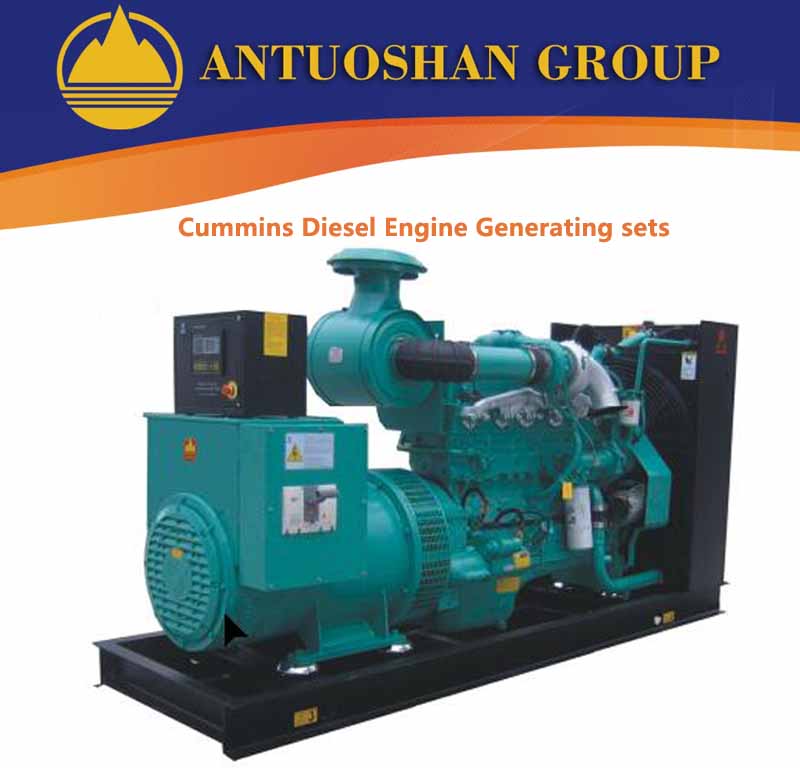

Cummins Diesel Engine Generating sets<60~220KVA> | |||||||||||||
Rating Voltage:400/230V Rating Frequency:50/60Hz | |||||||||||||
Model | Normal Power | Reserve Power | Engine | Generator |
Open Frame
|
Silent
|
|||||||
KVA | KW | KVA | KW | Model |
Cylinders&
Array |
L×W×H mm |
Net Weight kg |
Noise dBA |
L×W×H mm |
Net Weight kg |
Noise dBA |
||
ATC63P-S | 63 | 50 | 69 | 55 | 4BTA3.9-G2 | 4.L | UC1224F | 1860×760×1300 | 1100 | 96 | 2600×1000×1455 | 1520 | 70 |
ATC80P-S | 80 | 64 | 88 | 70 | 6BT5.9-G2 | 6.L | UC1224G | 2150×830×1400 | 1140 | 98 | 2790×1050×1500 | 1560 | 72 |
ATC100P-S | 100 | 80 | 110 | 88 | 6BT5.9-G2 | 6.L | UC1274C | 2150×830×1400 | 1150 | 98 | 2790×1050×1500 | 1600 | 72 |
ATC113P-S | 113 | 90 | 124 | 99 | 6BTA5.9-G2 | 6.L | UC1274D | 2150×830×1400 | 1200 | 98 | 2840×1050×1590 | 1700 | 72 |
ATC125P-S | 125 | 100 | 138 | 110 | 6BTAA5.9-G2 | 6.L | UC1274E | 2300×830×1400 | 1300 | 98 | 3160×1100×1590 | 1800 | 75 |
ATC150P-S | 150 | 120 | 165 | 132 | 6CTA8.3-G2 | 6.L | UC1274F | 2320×830×1500 | 1700 | 100 | 3400×1120×1785 | 2020 | 75 |
ATC188P-S | 188 | 150 | 206 | 165 | 6CTA8.3-G2 | 6.L | UCD1274H | 2400×850×1500 | 1700 | 100 | 3400×1120×1785 | 2080 | 75 |
ATC200P-S | 200 | 160 | 220 | 176 | 6CTA8.3-G2 | 6.L | UCD1274H | 2400×850×1500 | 1700 | 100 | 3400×1120×1785 | 2080 | 75 |
ATC225P-S | 225 | 180 | 248 | 198 | 6LTAA8.9-G2 | 6.L | UCD1274J | 2555×760×1650 | 1850 | 103 | 3500×1200×1865 | 2550 | 78 |
ATC250P-S | 250 | 200 | 275 | 220 | 6LTAA8.9-G2 | 6.L | UCD1274K | 2555×960×1650 | 2000 | 103 | 3500×1200×1865 | 2600 | 78 |
ATC250P-S | 250 | 200 | 275 | 220 | NT855-GA | 6.L | UCD1274K | 3000×1120×1650 | 2800 | 105 | 3900×1400×2000 | 3400 | 80 |
ATC250P-S | 250 | 200 | 275 | 220 | MTA11-G2A | 6.L | UCD1274K | 2740×1010×1700 | 2800 | 105 | 4300×1600×1800 | 3400 | 80 |
ATC275P-S | 275 | 220 | 303 | 242 | NTA855-G1A | 6.L | HC1444D | 3050×1120×1655 | 2600 | 105 | 3900×1400×2000 | 3400 | 80 |
ATC313P-S | 313 | 250 | 344 | 275 | NTA855-G2 | 6.L | HC1445ES | 3050×1120×1655 | 3000 | 105 | 3900×1400×2000 | 3800 | 80 |
ATC350P-S | 350 | 280 | 385 | 308 | QSM11-G2 | 6.L | HC1444E | 2950×1000×1655 | 3100 | 105 | 3900×1400×2000 | 3900 | 80 |
ATC350P-S | 350 | 280 | 385 | 308 | NTA855-G4 | 6.L | HC1444E | 3050×1120×1655 | 3100 | 105 | 3900×1400×2000 | 3900 | 80 |
ATC375P-S | 375 | 300 | 413 | 330 | NTAA855-G7 | 6.L | HC1444FS | 3270×1140×1800 | 3200 | 105 | 4300×1600×1800 | 4000 | 82 |
ATC400P-S | 400 | 320 | 440 | 352 | NTAA855-G7A | 6.L | HC1444F | 3270×1140×1800 | 3200 | 105 | 4300×1600×1800 | 4000 | 82 |
ATC450P-S | 450 | 360 | 495 | 396 | KTA19-G3 | 6.L | HC1544C | 3400×1360×2070 | 4200 | 106 | 5000×1800×2450 | 5200 | 83 |
ATC500P-S | 500 | 400 | 550 | 440 | KTAA19-G5 | 6.L | HC1544D | 3400×1360×2070 | 4200 | 106 | 5000×1800×2450 | 5200 | 83 |
ATC563P-S | 563 | 450 | 619 | 495 | TAA19-G5 | 6.L | HC1544E | 3600×1550×2200 | 4500 | 106 | 5000×1800×2450 | 5500 | 83 |
ATC600P-S | 600 | 480 | 660 | 528 | KTA19-G8 | 6.L | HC1544E | 3600×1550×2200 | 4500 | 106 | 5000×1800×2450 | 5500 | 83 |
ATC625P-S | 625 | 500 | 688 | 550 | KTAA19-G6A | 6.L | HC1544FS | 3600×1550×2200 | 4500 | 106 | 5000×1800×2450 |
