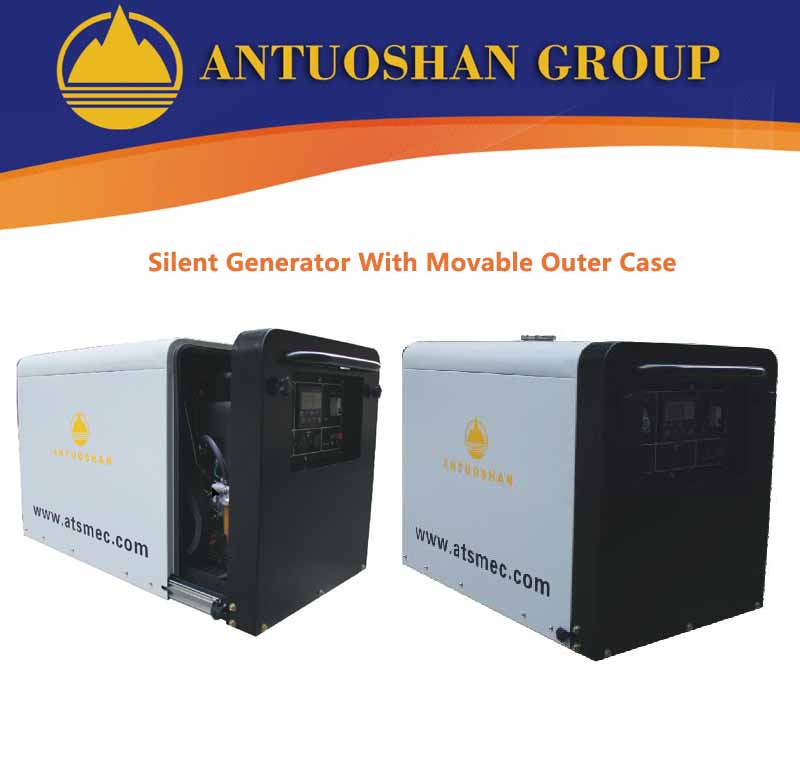

Silent Genset With Movable Outer Case
Product Features：
New patented design,Compact and portable,strong rigidity,Low noise,is convenient for use,simple maintenance,multiple configurations,Multiple configurations,easy to use,intelligent running,uneasy to damage.
New patented design,Compact and portable,strong rigidity,Low noise,is convenient for use,simple maintenance,multiple configurations,Multiple configurations,easy to use,intelligent running,uneasy to damage.
Model
|
ATQ6J-PSAT/TA
|
ATQ7J-PT/TA
|
ATQ8J-PSAT/TA
|
ATQ9J-PT/TA
|
Rated frequency(Hz)
|
50 60
|
|||
Output power(KVA)
|
6 6.6
|
7.0 7.5
|
8 9
|
9 10
|
Rated voltage(V)
|
230/115
240/120
|
400/230
416/240
|
230/115
240/120
|
400/230
416/240
|
Rated current(A)
|
26/52
27.5/55
|
10.1 10.4
|
34.8/69.6
37.5/75
|
13 13.9
|
Phase No.
|
Single
|
Three
|
Single
|
Three
|
Power factor
|
1
|
0.9(lag)
|
1
|
0.9(lag)
|
Insulation
|
F
|
|||
Pole No.
|
2
|
|||
Excitation mode
|
PMG
|
|||
DC12 V Output
|
12, 8.3A
|
|||
Dimension(Length*Width*height)(mm)
|
965*560*630
|
|||
Net weight
|
171
|
|||
Noise(7m)dB
|
70dB
|
|||
Engine model
|
QC188FB
|
QC570
|
||
Type
|
Single, 4-stroke, air-cooled, direct injection
|
|||
Desplacement
|
438
|
567
|
||
Cooling way
|
Air-cooled
|
|||
Lubricating way
|
Pressure&Splashing
|
|||
Starting way
|
Electric
|
|||
Lubricating oil capacity(L)
|
1.65
|
|||
Motor capacity V-KW
|
12V 0.8KW
|
|||
Dynamo capacity V-A
|
12V 8.3A
|
|||
Battery capacity V-Ah
|
12V 30A
|
|||
Fuel tank capacity(L)
|
16L
|
|||
