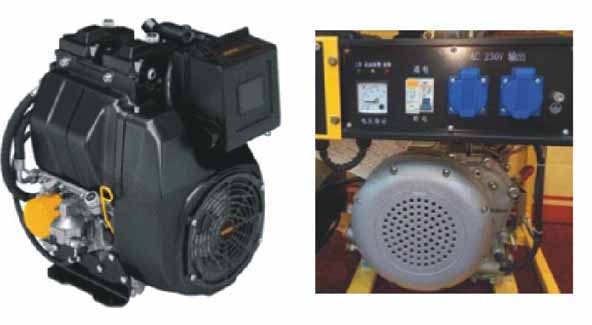

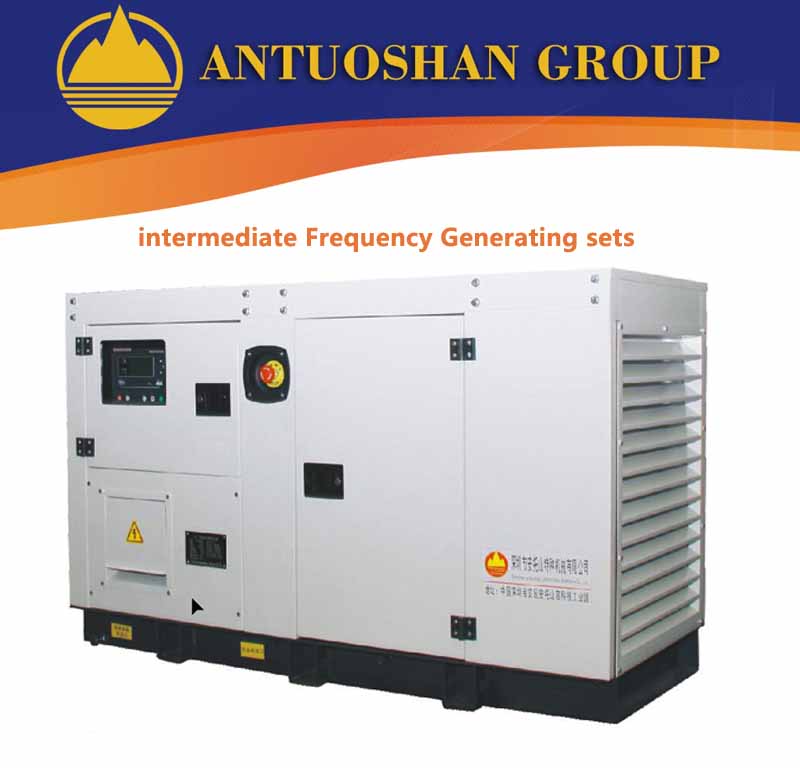

Intermediate Frequency Generating sets
Product features：
●The utility model is used for vehicle field engineering operation and is suitable for long distance bump impact.
●Strong power,stable power supply, special overvoltage protection, recovery and self checking function.
●Using military aviation technology,the thermal state is stable,Less affected by the environment,trouble-free Interval time is very long.
●A perfect substitute for imported geophysical generating set.
Intermediate Frequency Generating sets：
●The utility model is used for vehicle field engineering operation and is suitable for long distance bump impact.
●Strong power,stable power supply, special overvoltage protection, recovery and self checking function.
●Using military aviation technology,the thermal state is stable,Less affected by the environment,trouble-free Interval time is very long.
●A perfect substitute for imported geophysical generating set.
Intermediate Frequency Generating sets：
| Model |
Rated Output |
Maximum Output |
Rated Voltage |
Rated Current |
Set Speed |
Engine Rated Power |
Displacement | Oil consumption | Tank Capacity | Lubricating oil Capacity | Battery Capacity | Length×Width×Height | Net Weight(kg) |
| KVA | KVA | V | A | rpm | kW | L | L/h | L | L | Ah | mm | kg | |
| Kohler，gasoline Air-cooling，400Hz | |||||||||||||
| ATKL3P-PG400 | 3 | 3.3 | 115/200 | 10.8 | 3000 | 4.5 | 0.277 | 1.01 | 12 | 1.3 | 12V-45Ah | 750×600×560 | 90 |
| ATKL5P-PG400 | 5 | 5.5 | 115/200 | 18 | 3000 | 7 | 0.429 | 1.44 | 12 | 1.3 | 12V-45Ah | 930×610×660 | 190 |
| ATKL10P-PG400 | 10 | 11 | 115/200 | 36.1 | 3000 | 14 | 0.725 | 3.23 | 17 | 1.9 | 12V-45Ah | 1100×690×800 | 290 |
| Hatz，Air cooling，400Hz | |||||||||||||
| ATH10P-PG400 | 10 | 3 | 115/200 | 29 | 3000 | 14.7 | 0.997 | 3.8 | 17 | 2.5 | 12V-60Ah | 900×680×760 | 240 |
| ATH20P-PG400 | 20 | 4 | 115/200 | 58 | 3000 | 24.4 | 1.72 | 5 | 17 | 4.5 | 12V-100Ah | 1200×740×900 | 500 |
| ATH30P-PG400 | 30 | 5 | 115/200 | 87 | 3000 | 36.7 | 2.57 | 6.5 | 17 | 6 | 12V-100Ah | 1300×840×850 | 600 |
