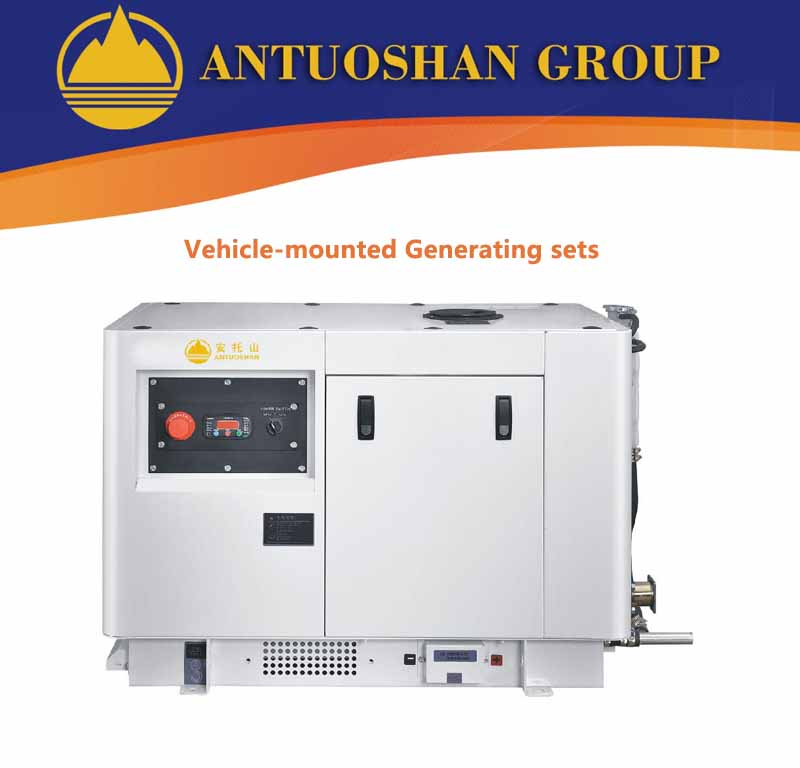

Vehicle-mounted Genset
Product features:
ATS's Split type vehicular generator are set from 6 kW to 25 kW,Our vehicle-mounted generating sets are composed of top domestic and foreign well-known brands and independent research and development of high efficiency permanent magnet generator.The split type generator set is designed for the internal installation of the vehicle,the remote water tank and muffler are separated from the main body of the generator set,can be mounted at the top,bottom,or side of a vehicle,the installation space of the generator set is greatly reduced,it also ensures the perfect performance of the generator without producing high temperature or harmful gas in the vehicle,and you can install the panel backup in the cab to realize the remote control of the generator set.
Parameter list of on-board generator set：
ATS's Split type vehicular generator are set from 6 kW to 25 kW,Our vehicle-mounted generating sets are composed of top domestic and foreign well-known brands and independent research and development of high efficiency permanent magnet generator.The split type generator set is designed for the internal installation of the vehicle,the remote water tank and muffler are separated from the main body of the generator set,can be mounted at the top,bottom,or side of a vehicle,the installation space of the generator set is greatly reduced,it also ensures the perfect performance of the generator without producing high temperature or harmful gas in the vehicle,and you can install the panel backup in the cab to realize the remote control of the generator set.
Parameter list of on-board generator set：
| Model |
Rated frequency Hz |
Rated power kW |
Rated voltage V |
Rated current A |
Noise dBA |
Engine Model |
Engine |
Water tank Installation Method |
Muffler Installation Method |
Length×Width×Height （mm） |
Weight （kg） |
| Vehicle-mounted Generating sets Type spectrums<The type compose（one phase）> | |||||||||||
| ATB8QJ-PSA | 50 | 8 | 115/230 | 69.5/34.7 | 57 | D1105 | P1044G | Independent external | Independent external | 1000×660×700 | 420 |
| ATB11QJ-PSAG60 | 60 | 11 | 120/240 | 91.6/45.8 | |||||||
| ATB10QJ-PSA | 50 | 10 | 115/230 | 86.9/43.4 | 57 | D1703 | P1044H | 1210×660×735 | 440 | ||
| ATB12QJ-PSAG60 | 60 | 12 | 120/240 | 100/50 | |||||||
| ATB14QJ-PSA | 50 | 13.6 | 115/230 | 118/59.1 | 62 | D1703 | P1044E | 1210×660×735 | 500 | ||
| ATB15QJ-PSAG60 | 60 | 15 | 120/240 | 125/62.5 | |||||||
| ATB15QJ-PSA | 50 | 15 | 115/230 | 130/65.2 | 62 | D2203 | P1144F | 1210×730×735 | 520 | ||
| ATB17QJ-PSAG60 | 60 | 17 | 120/240 | 141/70.8 | |||||||
| ATB16QJ-PSA | 50 | 16 | 115/230 | 139/69.5 | 57 | D2203 | P1144G | 1210×730×735 | 535 | ||
| ATB18QJ-PSAG60 | 60 | 18 | 120/240 | 150//75 | |||||||
| ATB18QJ-PSA | 50 | 18 | 115/230 | 156/78.2 | 57 | V3300 | P1144G | 1400×730×820 | 640 | ||
| ATB20QJ-PSAG60 | 60 | 20 | 120/240 | 166/83 | |||||||
| ATB20QJ-PSA | 50 | 20 | 115/230 | 173/86.9 | 57 | V3300 | P1144J | 1400×730×820 | 690 | ||
| ATB24QJ-PSAG60 | 60 | 24 | 120/240 | 200/100 | |||||||
| ATB25QJ-PSA | 50 | 25 | 115/230 | 217/108 | 57 | V3300 | P1144H | 1400×730×820 | 750 | ||
| ATB27QJ-PSAG60 | 60 | 27 | 120/240 | 225/112.5 | |||||||
| Vehicle-mounted Generating sets Type spectrums<The type composes (three phase)> | |||||||||||
| ATB8QJ-P | 50 | 8 | 400/230 | 14.4 | 57 | D1105 | PI1044E | Independent external | Independent external | 1000×660×700 | 420 |
| ATB11QJ-PG60 | 60 | 11 | 416/240 | 19 | |||||||
| ATB10QJ-P | 50 | 10 | 400/230 | 18 | 57 | D1703 | PI044F | 1210×660×735 | 440 | ||
| ATB12QJ-PG60 | 60 | 12 | 416/240 | 20.8 | |||||||
| ATB14QJ-P | 50 | 13.6 | 400/230 | 24.5 | 57 | D1703 | PI144G | 1070×680×750 | 500 | ||
| ATB15QJ-PG60 | 60 | 15 | 416/240 | 27 | |||||||
| ATB15QJ-P | 50 | 15 | 400/230 | 27 | 57 | D2203 | PI144D | 1210×730×735 | 520 | ||
| ATB17QJ-PG60 | 60 | 17 | 416/240 | 29 | |||||||
| ATB16QJ-P | 50 | 16 | 400/230 | 27 | 57 | D2203 | PI144D | 1400×730×820 | 535 | ||
| ATB18QJ-PG60 | 60 | 18 | 416/240 | 29 | |||||||
| ATB18QJ-P | 50 | 18 | 400/230 | 32.4 | 57 | V3300 | PI144E | 1400×730×820 | 640 | ||
| ATB20QJ-PG60 | 60 | 20 | 416/240 | 34.6 | |||||||
| ATB20QJ-P | 50 | 20 | 400/230 | 36 | 57 | V3300 | PI144E | 1400×730×820 | 735 | ||
| ATB24QJ-PG60 | 60 | 24 | 416/240 | 41.6 | |||||||
| ATB25QJ-P | 50 | 25 | 400/230 | 45.1 | 57 | V3300 | PI144G | 1400×730×820 | 750 | ||
| ATB27QJ-PG60 | 60 | 27 | 416/240 | 46.8 | |||||||
