AC Gear-shifting & Variable Frequency Genset
Product features：
ATS AC frequency conversion series,Good dynamic performance,Sufficient output power,High stability.Using high energy efficiency rare-earth Permanent magnetic structure brushless generator to provide power for users.Product integrated motor,intelligent electronic module.Intelligent, small size, light and flexible. High-efficiency and energy saving,is convenient and flexible.It is a new green energy resource pursued by the contemporary.The product has an intelligent immune protection system,make the product highly reliable and safe.In the application field, priority is given to the safety of the load and equipment, highlighting the product of human nature and intelligent features.

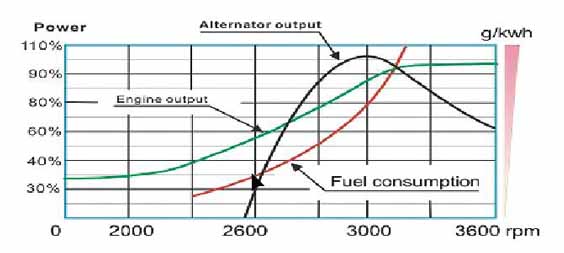

Our products use throttle intelligent control and variable speed technology.Improving the life cycle of AC generator sets.Save money and reduce emissions reasonably.Application value of variable speed：
a.High fuel efficiency；
b.Lower the piston ring and fuel injectors of carbon deposit to extend the service life of the unit at low speeds or light loads.
c.Adjust the power rotation speed according to the actual power,Effectively prolong the service life of the unit,Reduce noise pollution to the environment.
Overview of Pure sine wave generator set：
1：Overload Protection
In the allowable operating temperature range, rated current 1.2 times delay, 10-20 minutes output protection.
2：Temperature protection

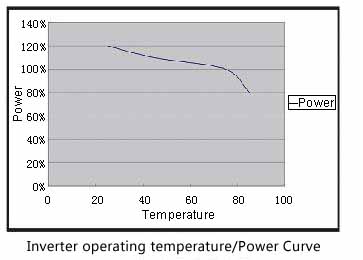

The AC inverter has temperature protection below 5KW.The temperature rise of the radiator is easy to increase,According to the working conditions, intelligent detection, automatic reduction of output, self-protection parameters, such as（Figure）Maximum allowable work temperature of the product：85±5% Centigrade.
3：Line fault protection
When the load is abnormal or the line is short, the intelligent detection stops the output.
4：Output protection
When the generator is out of order, the output voltage is automatically cut off and automatically stopped. Ensure the safety of electrical load. When the power rotating speed is abnormal, the machine can stop the machine automatically.
5：The output current parameters of some parts of frequency conversion power supply are as follows:
ATS AC frequency conversion series,Good dynamic performance,Sufficient output power,High stability.Using high energy efficiency rare-earth Permanent magnetic structure brushless generator to provide power for users.Product integrated motor,intelligent electronic module.Intelligent, small size, light and flexible. High-efficiency and energy saving,is convenient and flexible.It is a new green energy resource pursued by the contemporary.The product has an intelligent immune protection system,make the product highly reliable and safe.In the application field, priority is given to the safety of the load and equipment, highlighting the product of human nature and intelligent features.
Our products use throttle intelligent control and variable speed technology.Improving the life cycle of AC generator sets.Save money and reduce emissions reasonably.Application value of variable speed：
a.High fuel efficiency；
b.Lower the piston ring and fuel injectors of carbon deposit to extend the service life of the unit at low speeds or light loads.
c.Adjust the power rotation speed according to the actual power,Effectively prolong the service life of the unit,Reduce noise pollution to the environment.
Overview of Pure sine wave generator set：
1：Overload ProtectionIn the allowable operating temperature range, rated current 1.2 times delay, 10-20 minutes output protection.
2：Temperature protection
The AC inverter has temperature protection below 5KW.The temperature rise of the radiator is easy to increase,According to the working conditions, intelligent detection, automatic reduction of output, self-protection parameters, such as（Figure）Maximum allowable work temperature of the product：85±5% Centigrade.
3：Line fault protection
When the load is abnormal or the line is short, the intelligent detection stops the output.
4：Output protection
When the generator is out of order, the output voltage is automatically cut off and automatically stopped. Ensure the safety of electrical load. When the power rotating speed is abnormal, the machine can stop the machine automatically.
5：The output current parameters of some parts of frequency conversion power supply are as follows:
| Serial number | Power | Rated Current | Momentary peak current | Remarks |
| 1 | 5 | 21.7 | 90 | The frequency converter adjusts the adaptation parameter according to the actual application domain, or according to the customer custom performance parameter. The dynamic current is 1.5 times the rated current. |
| 2 | 7.5 | 32.6 | 107 | |
| 3 | 10 | 43.4 | 130 |
