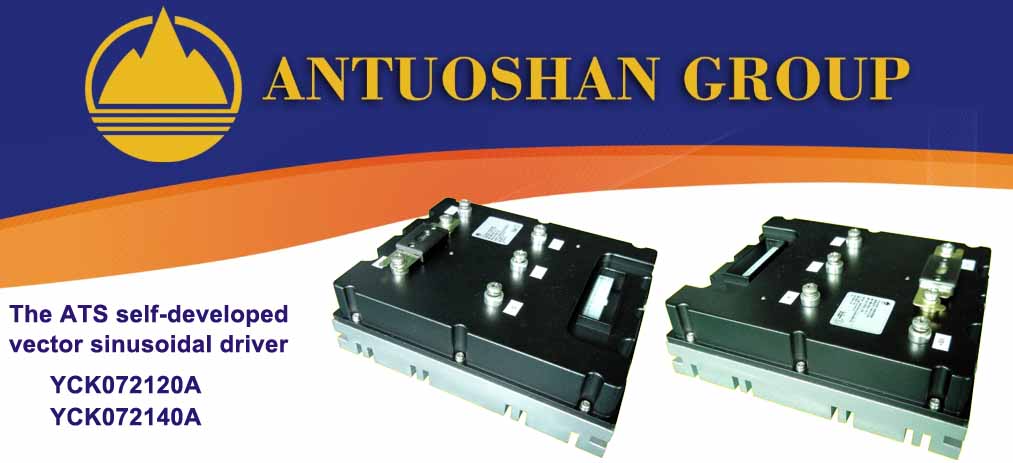

72V Field-oriented Controller
The Main Functions of Antuoshan self-developed Sinusoidal Field-oriented Driver:
1．For coreless motor to do the depth of development,further enhancing the effectiveness of the system.
2．Using advanced DSP control algorithm,FOC-180°degree sine wave vector control,output torque ripple small,high efficiency,starting and accelerating comfortable ride comfort,good experience.
3．Matching system of permanent magnet synchronous coreless motor efficiency as high as 90%,more than 30% efficiency of load intervals are more than 80%.
4．Offset angle from the initial position of motor learning function,providing accurate torque control.
5．Automatic temperature regulation function,according to the motor and controller used to adjust temperature,overheating cases,linear current output weakened to protect the safe operation of the system.
6．Provide a variety of protection:stall overload,over-temperature,over-voltage,over current,under voltage,speed,break,short circuit protection,fault protection,system security and reliability.
7．Support the serial port 485,communication protocol,Bluetooth and other functions.
1．For coreless motor to do the depth of development,further enhancing the effectiveness of the system.
2．Using advanced DSP control algorithm,FOC-180°degree sine wave vector control,output torque ripple small,high efficiency,starting and accelerating comfortable ride comfort,good experience.
3．Matching system of permanent magnet synchronous coreless motor efficiency as high as 90%,more than 30% efficiency of load intervals are more than 80%.
4．Offset angle from the initial position of motor learning function,providing accurate torque control.
5．Automatic temperature regulation function,according to the motor and controller used to adjust temperature,overheating cases,linear current output weakened to protect the safe operation of the system.
6．Provide a variety of protection:stall overload,over-temperature,over-voltage,over current,under voltage,speed,break,short circuit protection,fault protection,system security and reliability.
7．Support the serial port 485,communication protocol,Bluetooth and other functions.
| Product model | Power level(kW） | Rated DC side working voltage（Vdc） | DC side maximum Working current(Idc) |
Maximum phase current (Arms） |
| YCK072120A | 4 | 72 | 120 | 180 |
| YCK072140A | 5 | 72 | 140 | 210 |
