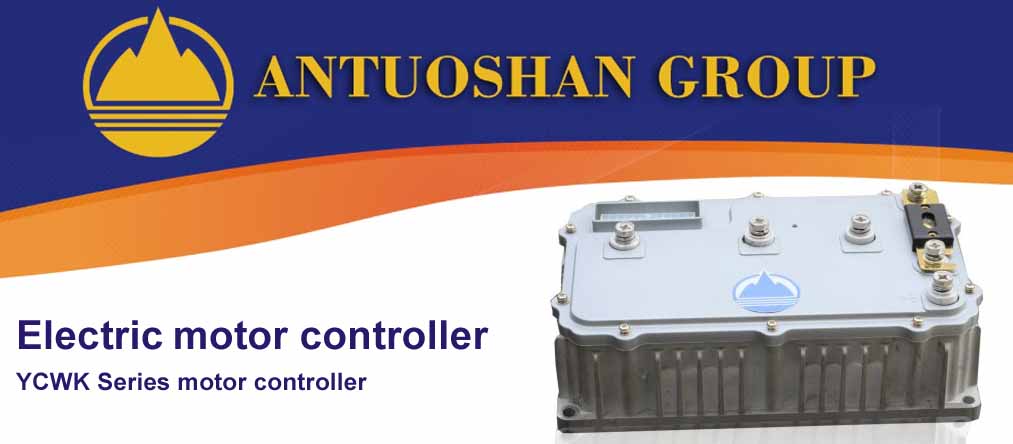

60V Field-oriented Controller
The Main Functions of Antuoshan self-developed Sinusoidal Field-oriented Driver:
1. for the core motor to do the depth of development, the system performance is further enhanced.
2. the use of advanced DSP control technology, using FOC control algorithm, FOC-180 degrees sine wave vector control, output torque ripple small, high efficiency, start and accelerate, comfortable, smooth, good experience
3. matching permanent magnet synchronous coreless motor system, efficiency as high as 90%, more than 30%, the load interval efficiency of more than 80%;
4. motor initial position offset angle, self-learning function, to provide precise torque control;
5. temperature control automatic adjustment function, according to the motor and controller temperature real-time adjustment, under overheating circumstances, linear weakening current output, to protect the safe operation of the system;
6. provide various protection: blocking, rotating, overload, over temperature, over voltage, over current, under voltage, speed, broken line, short circuit protection and other fault protection, the system is safe and reliable
7. support serial port 485, CAN2.0 communication protocol, Bluetooth and other functions;
2. the use of advanced DSP control technology, using FOC control algorithm, FOC-180 degrees sine wave vector control, output torque ripple small, high efficiency, start and accelerate, comfortable, smooth, good experience
3. matching permanent magnet synchronous coreless motor system, efficiency as high as 90%, more than 30%, the load interval efficiency of more than 80%;
4. motor initial position offset angle, self-learning function, to provide precise torque control;
5. temperature control automatic adjustment function, according to the motor and controller temperature real-time adjustment, under overheating circumstances, linear weakening current output, to protect the safe operation of the system;
6. provide various protection: blocking, rotating, overload, over temperature, over voltage, over current, under voltage, speed, broken line, short circuit protection and other fault protection, the system is safe and reliable
7. support serial port 485, CAN2.0 communication protocol, Bluetooth and other functions;
| Product model | Power level(kW） | Rated DC side working voltage（Vdc） | DC side maximum Working current(Idc) |
Maximum phase current (Arms） |
| YCWK060060H | 2 | 60 | 60 | 110 |
| YCWK060080H | 3 | 60 | 80 | 141 |
| YCWK072110H | 4 | 72 | 110 | 180 |
| YCWK072140H | 5 | 72 | 140 | 210 |
