ACY series Dual Permanent Magnet Low-noise Power Station

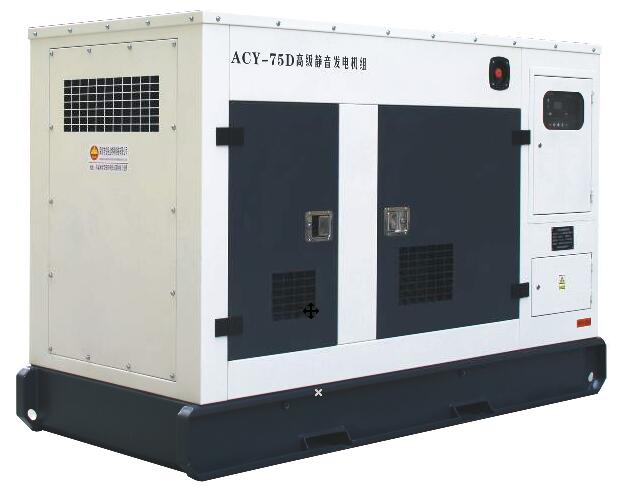

ACY-D series Dual Permanent Magnet Power Frequency Brushless Low-noise Power Station
Product Introduction：
ACY-D Series dual permanent magnet brushless low noise power station adopts domestic and foreign famous brand diesel engine and assembled from the independently developed efficient dual permanent magnet frequency brushless generators,Adopted the unique patented mute technology at the same time.according to customer's demand,the control system can adopt different control modules at domestic and abroad.

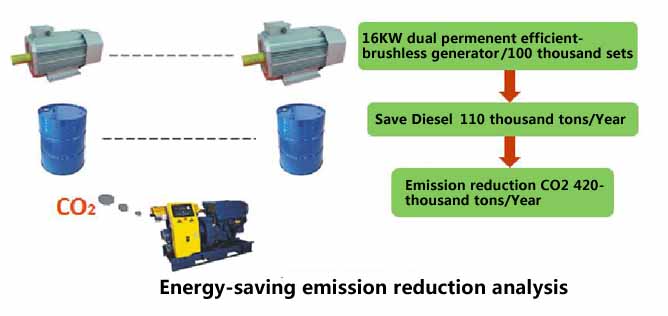

ACY-D Series dual permanent magnet brushless low noise power station,It's an advanced silent power station,The power station is equipped with an efficient dual permanent magnet motor and unique patented mute Technology,which makes it smaller and lighter,also has very good high efficiency in energy saving,emission reduction and environmental protection,saving fuel and money.
The product can be adapted to various military and civil applications,the utility model is especially suitable for places with high volume,weight and high noise environment.
Product Features：
●Compact structure,small volume,light weight,high efficiency.
●Efficient multi-cannel inlet and exhaust noise type,into the exhaust channel.
●Using muti-stage damping,vibration isolation,noise is low,ultra-quiet level.
●Separation by water tank structure,small volume by 30%,25% in weight.
●Can take resistive,inductive liabilities and band capacitive liabilities.
●Start the asynchronous motor ability.
●Long service life,mean time between failures not lower than 2000 hours.
Product Introduction：
ACY-D Series dual permanent magnet brushless low noise power station adopts domestic and foreign famous brand diesel engine and assembled from the independently developed efficient dual permanent magnet frequency brushless generators,Adopted the unique patented mute technology at the same time.according to customer's demand,the control system can adopt different control modules at domestic and abroad.
ACY-D Series dual permanent magnet brushless low noise power station,It's an advanced silent power station,The power station is equipped with an efficient dual permanent magnet motor and unique patented mute Technology,which makes it smaller and lighter,also has very good high efficiency in energy saving,emission reduction and environmental protection,saving fuel and money.
The product can be adapted to various military and civil applications,the utility model is especially suitable for places with high volume,weight and high noise environment.
Product Features：
●Compact structure,small volume,light weight,high efficiency.
●Efficient multi-cannel inlet and exhaust noise type,into the exhaust channel.
●Using muti-stage damping,vibration isolation,noise is low,ultra-quiet level.
●Separation by water tank structure,small volume by 30%,25% in weight.
●Can take resistive,inductive liabilities and band capacitive liabilities.
●Start the asynchronous motor ability.
●Long service life,mean time between failures not lower than 2000 hours.
|
Rating Voltage：400/230V
|
Rating Frequency：50Hz
|
|||||||||
|
Model
|
Normal Power
|
Reserve Power
|
Engine
Model |
Engine
（Dual permanent magnetic） |
Silent
|
|||||
|
kVA
|
kW
|
kVA
|
kW
|
Length×Width×Height
（mm） |
Net Weight
（Kg） |
Noise Value
（dBA） |
Vibration Value
（mm） |
|||
|
ATP15J-DP/L
|
15
|
12
|
16
|
13
|
403A-15G
|
ATS.K1-12
|
1650×850×1050
|
680
|
60
|
0.02
|
|
ATP25J-DP/L
|
25
|
20
|
28
|
22
|
1103A-33G
|
ATS.K1-20
|
2000×950×1400
|
1040
|
60
|
0.02
|
|
ATP40J-DP/L
|
40
|
32
|
44
|
35
|
1103A-33TG1
|
ATS.K1-30
|
2000×950×1400
|
1080
|
60
|
0.02
|
|
ATP50J-DP/L
|
50
|
40
|
55
|
44
|
1103A-33TG2
|
ATS.K1-40
|
2000×950×1400
|
1340
|
60
|
0.02
|
|
ATP63J-DP/L
|
63
|
50
|
69
|
55
|
6BT5.9-G
|
ATS.K1-50
|
2420×1050×1600
|
1670
|
62
|
0.02
|
|
ATP80J-DP/L
|
80
|
64
|
88
|
70
|
6BT5.9-G
|
ATS.K1-64
|
2420×1050×1600
|
1720
|
62
|
0.02
|
|
ATP93J-DP/L
|
93
|
75
|
104
|
83
|
6BT5.9-G
|
ATS.K1-75
|
2420×1050×1600
|
1780
|
62
|
0.015
|
|
ATP112J-DP/L
|
112
|
90
|
124
|
99
|
6BTAA5.9-G
|
ATS.K1-90
|
3000×1150×1750
|
2100
|
65
|
0.018
|
|
ATP125J-DP/L
|
125
|
100
|
138
|
110
|
6BTAA5.9-G
|
ATS.K1-100
|
3000×1150×1750
|
2160
|
65
|
0.018
|
|
ATP150J-DP/L
|
150
|
120
|
165
|
132
|
6CTA8.3-G
|
ATS.K1-120
|
3000×1150×1750
|
2305
|
66
|
0.02
|
