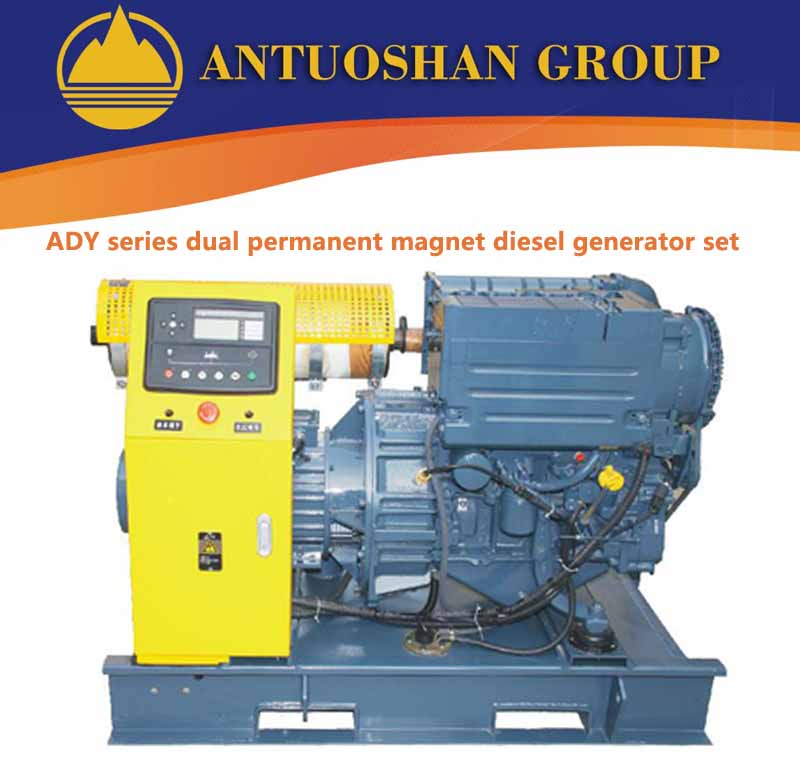

ADY series Dual Permanent Magnet Diesel Generator Set
ADY series of double frequency permanent magnet brushless diesel generator products ADY series dual power permanent magnet brushless diesel generator, using a series of FL air-cooled diesel engine of the international advanced level of German DEUTZ powered, and double frequency permanent magnet with high efficiency and energy saving, self-developed power quality good brushless synchronous generator assembly a unit. The unit control system adopts mechatronics control module and the British Sea Company Fu electronic governor system innovation, good performance, reliable work, can adapt to the needs of a variety of civilian users, especially suitable for the desert plateau, and serious water shortage area. In accordance with the needs of users, it can also provide other brands of air-cooled or water-cooled diesel engine assembled double permanent magnetic frequency brushless diesel generator sets. Engine: choose Germany imported DEUTZ air-cooled engine series good environmental adaptability, reliable work in -40 to +50 DEG C, altitude 5500m. Small pollution, small amount of harmful gas. The parts have good versatility, interchangeability, self retaining device and safe operation. Low temperature, good starting, more than -25 degrees Celsius directly start; use preheating device, can be in -40 degrees Celsius 30min start smoothly. Generator: the Antoine hill company efficient energy saving and emission reduction environmental protection type permanent magnet brushless double frequency green diesel generator motor, permanent magnet material. Small size, light weight and good mobility. High efficiency, fuel-efficient, economical, emission reduction, environmental protection. The power supply quality is good, the voltage precision is high. Good dynamic performance, strong ability to start asynchronous motors. The utility model has the advantages of good load adaptability, electric skills, inductive hysteresis, power factor load, and capacitive forward power factor load. Small radio interference, good electromagnetic compatibility. Advanced dual permanent magnet generator design technology, so that the generator has good maintenance free and reliability. Control system: manual control system, automatic control system, intelligent control system, ADY series
Double Permanent Magnet Power Frequency Brushless Diesel Generator set
Product introduction The ADY series of double frequency permanent magnet brushless diesel generator, using a series of FL air-cooled diesel engine of the international advanced level of German DEUTZ powered, and double frequency permanent magnet with high efficiency and energy saving, self-developed power quality good brushless synchronous generator assembly unit. The unit control system adopts mechatronics control module and the British Sea Company Fu electronic governor system innovation, good performance, reliable work, can adapt to the needs of a variety of civilian users, especially suitable for the desert plateau, and serious water shortage area. In accordance with the needs of users, it can also provide other brands of air-cooled or water-cooled diesel engine assembled double permanent magnetic frequency brushless diesel generator sets.
Engine: The German imported DEUTZ air-cooled engine series The environmental adaptability is good, and it works reliably at -40 DEG C to +50 DEG C and elevation 5500m. Small pollution, small amount of harmful gas. The parts have good versatility, interchangeability, self retaining device and safe operation. Low temperature, good starting, -25 temperature above the direct start; With preheating device, it can start successfully in 30min at -40 degrees centigrade.
Alternator: The Antoine hill company efficient energy saving and emission reduction environmental protection type double frequency permanent magnet brushless diesel generator Green motor, permanent magnet material. Small size, light weight and good mobility. High efficiency, fuel-efficient, economical, emission reduction, environmental protection. The power supply quality is good, the voltage precision is high. Good dynamic performance, strong ability to start asynchronous motors. The utility model has the advantages of good load adaptability, electric skills, inductive hysteresis, power factor load, and capacitive forward power factor load. Small radio interference, good electromagnetic compatibility. Advanced dual permanent magnet generator design technology, so that the generator has good maintenance free and reliability.
Control system: Manual control system automatic control system Intelligent control system
Double Permanent Magnet Power Frequency Brushless Diesel Generator set
Product introduction The ADY series of double frequency permanent magnet brushless diesel generator, using a series of FL air-cooled diesel engine of the international advanced level of German DEUTZ powered, and double frequency permanent magnet with high efficiency and energy saving, self-developed power quality good brushless synchronous generator assembly unit. The unit control system adopts mechatronics control module and the British Sea Company Fu electronic governor system innovation, good performance, reliable work, can adapt to the needs of a variety of civilian users, especially suitable for the desert plateau, and serious water shortage area. In accordance with the needs of users, it can also provide other brands of air-cooled or water-cooled diesel engine assembled double permanent magnetic frequency brushless diesel generator sets.
Engine: The German imported DEUTZ air-cooled engine series The environmental adaptability is good, and it works reliably at -40 DEG C to +50 DEG C and elevation 5500m. Small pollution, small amount of harmful gas. The parts have good versatility, interchangeability, self retaining device and safe operation. Low temperature, good starting, -25 temperature above the direct start; With preheating device, it can start successfully in 30min at -40 degrees centigrade.
Alternator: The Antoine hill company efficient energy saving and emission reduction environmental protection type double frequency permanent magnet brushless diesel generator Green motor, permanent magnet material. Small size, light weight and good mobility. High efficiency, fuel-efficient, economical, emission reduction, environmental protection. The power supply quality is good, the voltage precision is high. Good dynamic performance, strong ability to start asynchronous motors. The utility model has the advantages of good load adaptability, electric skills, inductive hysteresis, power factor load, and capacitive forward power factor load. Small radio interference, good electromagnetic compatibility. Advanced dual permanent magnet generator design technology, so that the generator has good maintenance free and reliability.
Control system: Manual control system automatic control system Intelligent control system
| Key technical data | |||||||||||
| Model | ADY | ||||||||||
| Rated power（KW） | 12 | 16 | 20 | 24 | 30 | 40 | 50 | 75 | 90 | 120 | 150 |
| Rated voltage（V） | 400 | ||||||||||
| Rated frequency（Hz） | 50 | ||||||||||
| Rated speed（r/min） | 1500 | ||||||||||
| Phase number and connection method | Three-phase four wire system | ||||||||||
| power factorcos | 0.85（lagging）/-0.85（leading）【Note: also available+0.8（lagging）/-0.85（leading）product】 | ||||||||||
| Engine model※※ | F2L1011 | F2L1011 | F4L912 | F4L912 | F4L413F | F6L912 | F6L413F | F8L413F | BF8L413F | F12L413F | F12L413F |
| Alternator | Double permanent magnet power frequency brushless synchronous generator | ||||||||||
| Cooling method | Air cooling | ||||||||||
| Start-up mode | Electrical startup | ||||||||||
| system function | Manual / automatic / parallel / protective / intelligent | ||||||||||
| Outline size（mm） | 1270*600*890 | 1300*600*890 | 1780*730*1200 | 1800*730*1200 | 1920*820*1240 | 2000*1220*1240 | 2030*1220*1240 | 2085*1220*1240 | 2205*1220*1240 | 2570*1220*1380 | 2580*1220*1380 |
| quality（Kg） | 410 | 425 | 780 | 840 | 960 | 1150 | 1675 | 1750 | 2100 | 2400 | 3500 |
| Main performance indexes | |||||||||||
| Voltage setting range（%） | 95～105 | Line voltage waveform distortion rate（%） | 3 | ||||||||
| Steady-state voltage regulation（%） | ±1/±2.5 | Starting asynchronous motor capability | 2 times the international standard | ||||||||
| Transient voltage regulation rate（%） | ±15 | radio interference | accord withGJB235A-1997 | ||||||||
| Voltage stability time（S) | 0.5 | NoisedB（A)（1m place） | ≤98 | ||||||||
| Voltage fluctuation rate（%） | 0.5 | Exhaust emission | Conform to Euro III standard | ||||||||
| Steady-state frequency regulation（%） | ±1/±5※ | Unit fuel consumption rate（%） | ≤210～260※※※ | ||||||||
| Transient frequency regulation（%） | ±7/±10※ | Generator efficiency（%） | ≥90 | ||||||||
| Frequency stability time（S) | 3 | Insulation level | F | ||||||||
| Frequency fluctuation（%） | 0.5 | temperature rise（K） | ≤75 | ||||||||
| Note: 1. units with different configurations have different values. 2. "a different diesel engine oil with different fuel consumption rate. 3. "a * according to the needs of the user can configure different types of diesel engine. | |||||||||||
