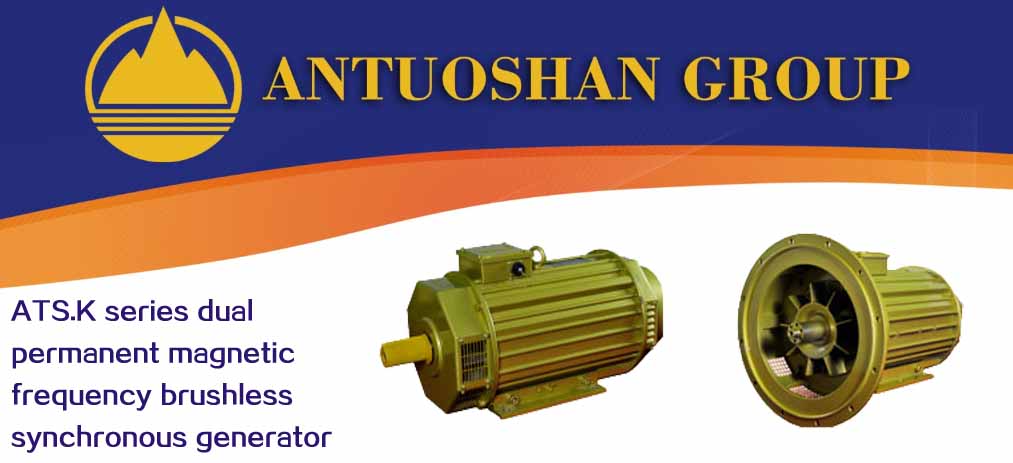

ATS.K series Dual Permanent Magnet Power Frequency Brushless Synchronous Generator
Product Introduction
ATS.K Series Dual permanent magnetic frequency brushless three-phase synchronous generator is a double permanent magnet generator with open structure, and its protection structure has many structures, such as IP21/IP22/IP23 etc.
Main performance advantages are:
1）High efficiency and efficiency is 4% to 10% higher than that of electric excitation generator;
2）Small size, light weight, smaller than the electric excitation generator, the volume weight is 20% to 30%;
3）The power supply quality is good, the voltage precision is high, the steady state voltage adjustment rate is + 1%;
4）Dynamic performance is good, start asynchronous motor ability, can start 100%PH no-load asynchronous motor;
5）Load adaptability is good, not only can live inductive load, but also can carry capacitive load;
6）Electromagnetic compatibility is good, radio interference is small; Applications: Dual permanent magnet power frequency brushless synchronous generator compact stucture,Small volume,light weight,efficiency,with good electric supply quality,miniaturization of military power supplies.Dual permanent magnet power frequency brushless synchronous generator is a new type of green energy-saving environmental protection type motor product with high effciency and low running cost.Very suitable for on-board power supply and military power supply.Among them,IP23 can be used as a marine generator protective structure.ATS.K series of dual permanent magnet power frequency synchronous generator has two structures,single bearings and double bearings.single bearings is assembled with diesel engine and assembled into a diesel generator set.
2）Small size, light weight, smaller than the electric excitation generator, the volume weight is 20% to 30%;
3）The power supply quality is good, the voltage precision is high, the steady state voltage adjustment rate is + 1%;
4）Dynamic performance is good, start asynchronous motor ability, can start 100%PH no-load asynchronous motor;
5）Load adaptability is good, not only can live inductive load, but also can carry capacitive load;
6）Electromagnetic compatibility is good, radio interference is small; Applications: Dual permanent magnet power frequency brushless synchronous generator compact stucture,Small volume,light weight,efficiency,with good electric supply quality,miniaturization of military power supplies.Dual permanent magnet power frequency brushless synchronous generator is a new type of green energy-saving environmental protection type motor product with high effciency and low running cost.Very suitable for on-board power supply and military power supply.Among them,IP23 can be used as a marine generator protective structure.ATS.K series of dual permanent magnet power frequency synchronous generator has two structures,single bearings and double bearings.single bearings is assembled with diesel engine and assembled into a diesel generator set.
Technical Parameters:
| Model | Power | Flange type transition Socket | Disc type coupling | Weight(Kg) | a | b | c | e | d | d1 | d2 | d3 | d4 | d5 |
| ATS.K1-16 | 16KW | SAE4 | SAE7.5 | 118 | 30.2 | 255.5 | 46 | 513 | 8.8 | 362 | 241.3 | 406 | 381 | 222.2 |
| SAE3 | SAE11.5 | 121 | 39.6 | 245.5 | 56 | 503 | 11 | 409.6 | 352.4 | 451 | 428.6 | 333.4 | ||
| ATS.K1-20 | 20KW | SAE4 | SAE7.5 | 133 | 30.2 | 255.5 | 46 | 542 | 8.8 | 362 | 241.3 | 406 | 381 | 222.2 |
| SAE3 | SAE11.5 | 136 | 39.6 | 245.5 | 56 | 532 | 11 | 409.6 | 352.4 | 451 | 428.6 | 333.4 | ||
|
ATS.K1-24 |
24KW | SAE4 | SAE7.5 | 147 | 30.2 | 255.5 | 46 | 578 | 8.8 | 362 | 241.3 | 406 | 381 | 222.2 |
| SAE3 | SAE11.5 | 150 | 39.6 | 245.5 | 56 | 568 | 11 | 409.6 | 352.4 | 451 | 428.6 | 333.4 | ||
|
ATS.K1-30 |
30KW | SAE4 | SAE7.5 | 170 | 30.2 | 255.5 | 46 | 636 | 8.8 | 362 | 241.3 | 406 | 381 | 222.2 |
| SAE3 | SAE11.5 | 173 | 39.6 | 245.5 | 56 | 626 | 11 | 409.6 | 352.4 | 451 | 428.6 | 333.4 | ||
|
ATS.K1-36 |
36KW | SAE4 | SAE7.5 | 185 | 30.2 | 255.5 | 46 | 663 | 8.8 | 362 | 241.3 | 406 | 381 | 222.2 |
| SAE3 | SAE11.5 | 188 | 39.6 | 245.5 | 56 | 653 | 11 | 409.6 | 352.4 | 451 | 428.6 | 333.4 |
